| Kit Number: | FS-YAMA100-YSLB
FS-YAMA100-YVLB | | Apply for: | For Yamaha YV or YS pick and place machines | | label size: | 3mm≤size≤100mm | | Label thickness: | ≤10mm | | Feeding Position Accuracy: | ±0.2mm | | Dimensions(mm): | 743*97*200 | | Weight(KG): | Approx. 7kg(excluding base) | | |
Product Introduction:

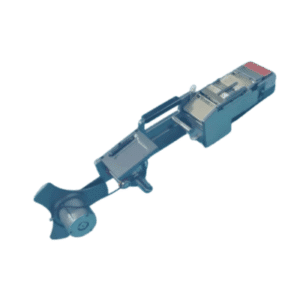

The Yamaha label feeder is suitable for automatically peeling and supplying roll materials such as paper labels, protective film, foam, double-sided adhesive, conductive adhesive, copper foil, steel sheet, reinforcement plate, etc.
The feeder adopts an industrial-grade intelligent design with strong compatibility and fast feeding speed. Feeding parameters can be set, and it supports both working mode and debugging mode for user convenience. It features a color touchscreen display for easy operation of parameters and settings.
When integrated into automated equipment, the feeder can achieve automatic feeding effectively, thereby improving production efficiency, and making it highly suitable for automatic feeding in the SMT industry.
Features:
- Designed with sturdy aluminum alloy, lightweight yet durable;
- Advanced forward-feed supply mechanism, peeling before suction;
- Supports single-column and multi-column labels;
- ±0.3mm feeding accuracy and <0.3% throwing material rate;
- Utilizes a 32-bit efficient processor, showcasing excellent control performance;
- Closed-loop control structure, preventing missed steps while dynamically outputting torque in real-time for stable feeding;
- Outstanding practicality, supporting online and automatic modes.
Advantages 1
- The flip-top design of the stripping plate can achieve the fastest material change, and the vacuum hole adsorption can steadily increase the tension of the material belt, making it easier to successfully peel off sticky materials.
- The sliding rib allows one feeder to meet the use of material labels of various widths; the height of the pressure cover can be adjusted to meet the use of labels of different thicknesses.
- The platform is smooth and the high anti-stick silicone pad ensures that tape or foam can be easily picked up and maintained;
- Multi-head ultra-sensitive optical fiber sensors can realize simultaneous stripping of single or multiple columns (up to 12 columns) of labels;
- The design of the feeding gear not only solves the problem of feeding errors caused by the slippage of the bottom paper but also solves the problem of easy wear of the rubber-coated wheels;
- The beveled locking design and the increased contact area between the bottom paper and the feed gear ensure safety and locking.
Advantages 2
- The design of the feeding gear not only solves the problem of feeding errors caused by the slippage of the bottom paper but also solves the problem of easy wear of the rubber-coated wheels;
- The beveled locking design and the increased contact area between the bottom paper and the feed gear ensure safety and locking.
