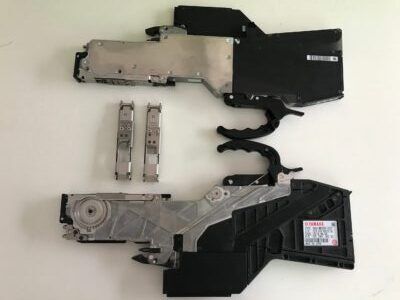

SS tape feeder Yamaha brand original available for vintage 2016+ newer version feeding tools. It can be used for YS12F YS24 and other YS series model PNP machines.
Yamaha ss zs brand original feeder stock the following:
YAMAHA ZS feeder eletric
4mm KLJ-MCN00-000
8mm KLJ-MC100-000
12/16mm KLJ-MC200-000
24mm KLJ-MC400-000
32mm KLJ-MC500-000
44mm KLJ-MC600-000
56mm KLJ-MC700-000
72mm KLJ-MC800-000
88mm KLJ-MC900-000
YAMAHA SS electric feeder
4mm KHJ-MCN00-000
8mm KHJ-MC100-001
12/16mm KHJ-MC200-000
24mm KHJ-MC400-000
32mm KHJ-MC500-000
44mm KHJ-MC600-000
56mm KHJ-MC700-000
72mm KHJ-MC800-000
88mm KHJ-MC900-000
The consumables spare parts of 8mm feeder are the following. Besides of these accessories you have to prepare feed. The Daily Feeder Station Rack Maintenance is necessary to do as well.
KHJ-MC16F-00 KHJ-MC16J-00 SCREW,FLAT
KHJ-MC10E-00 SCREW,FLAT HEXLOBE
91317-03006 92A08-03305 91312-03008 92A08-03303 KHJ-MC10M-00 KHJ-MC1A6-00 SCREW
KHJ-MC134-00 GEAR,IDLE F1
KHJ-MC156-00 KHJ-MC16V-00 ROLLER,P/O
KHJ-MC13D-00 8MM SPRING
KHJ-MC18A-00 SPRING,CLAMP
If chips and foreign objects fall on the feeder frame, the chips and foreign objects will be clamped into the feeder when the feeder is installed. This is an important reason for the offset of the adsorption position. To prevent this problem, regular inspections and cleanings are essential.
.Use a soft brush to clean
.Use a vacuum tool to clean
After connecting the optional vacuum tool KHY-M88V0-A0X to the origin socket on the front of the placement machine, it can absorb fine dust.
