| Model: | VBLF-02 | | Materil: | Fabric | | Size: | 105*65*127.2mm | | Using for: | Panasonic SPG printer | | Air Filtration area: | 0.18 ㎡ | | Brand: | FS | | Application: | SMT assembly line | | Ship term: | Flight | | Lead time: | Stock | | |

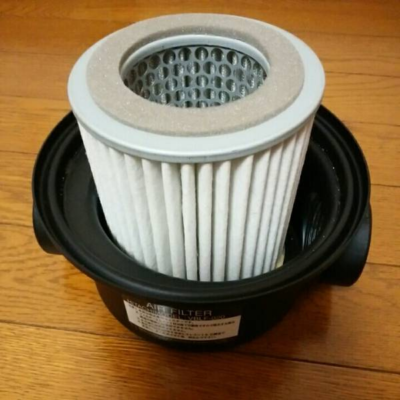

Air filter VBLF-02 Hitachi for Panasonic SPG printer machine can remove impurities and dust that are sucked by the whirlpool blower by about 70μm to protect the machine from stable operation.
Air Filtration area: 0.18㎡
Features
·Maintenance and inspection are simple, and the filter element is easy to replace.
·The filter material is fabric and can be washed.
·The ventilation resistance is small, and the performance of the blower can be fully utilized.
·The separation performance of the filter element is good and can be used for a long time. In addition, due to the use of metal mesh support protest pressure is strong
·Excellent air tightness and no leakage.
Air Filter Attentions for use:
·This product is a special filter for inhalation. It must not be used on the discharge side of the blower. If used on the discharge side, under certain conditions of use of the blower the filter element may burn due to high-temperature air.
·Can not be used for corrosive substances such as acid and alkali, as well as flammable and explosive substances. Since the filter material of the filter is cloth and is combustible it cannot be used for high-temperature substances that can be ignited.
·The clogging of the filter element varies depending on the conditions of use. Generally, the cleaning is performed when the differential pressure reaches approximately 980 Pa. If the filter element is neglected for cleaning, it will cause blockage which will increase the ventilation resistance and cause the blower to malfunction.
·Do not inhale water rain oil etc. If the filter element contains water or oil. It will increase the ventilation resistance and cause the blower to malfunction. If water or oil is trapped inside the filter box clean the inside of the filter box with a clean cloth and allow it to dry.
