| Model Number: |
NM-EJW2A |
| Application: |
Calibrate adjust CM402,CM602,NPM Feeder |
| Dimention: |
400*500*1100mm |
| Adjusted accuracy: |
≦0.02mm |
| Calibrated accuracy: |
≦0.05mm |
| Power: |
100-240V 50/60Hz |
| Jig tape set: |
1set(8mm-32mm,master jig |
|
|
Features:
1) Precise XY axis adjustment;
2) axis camera can be directly adjusted;
3) 110V/220V/24V DC power supply;
4) black and white cross reference cursor;
5) Automatically step function;
6) bright LED display;
7) precise control fixtures feeders;
8) Panasonic 8mm,12mm,16mm and 24 mm 32mm 44mm 56mm feeders control band.
Specifications:

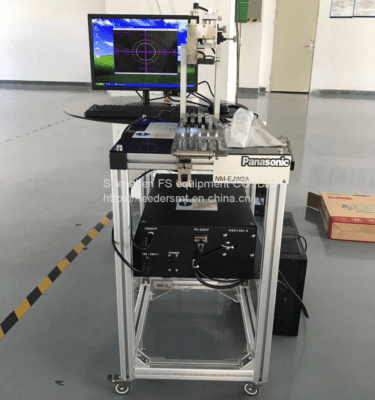

Panasonic electric tape feeder calibrate jig
Application and using for pick and place machine CM402,CM602,NPM Feeder
Model:NM-EJW2A
Demensions:400*500*1100mm
Power:100-240V 50/60Hz
The calibrate master tape:8mm,12mm,16mm,24mm,32mm,44-56-72mm
Adjusted accuracy:≦0.02mm
Calibrated accuracy:≦0.05mm
Jig tape set:1set(8mm,12mm,16mm,24mm,32mm,master jig
Weight:60kg
