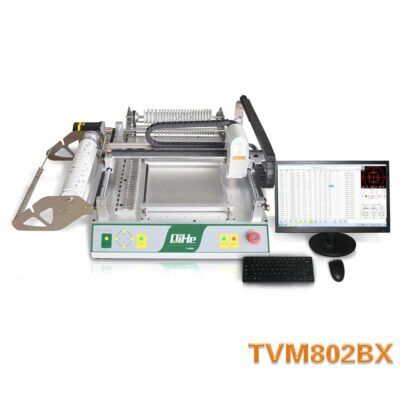

Small tabletop pick and place machine simple desktop pick and place PCB mounter

You are here: Home » Products » Peripheral SMT component assist machine » Small tabletop pick and place machine simple desktop pick and place PCB mounter
Model Number: TVM802BX
Max applicable PCB: 20x20mm~260x340mm
Max XY Moving rang: 395x450mm
Max Z Moving range: 12.5mm
Placement head quantity: 2
Mounting speed without vision: 6500CPH
Mounting speed with vision: 5500CPH
Mounting accuracy: 0.025mm
Applicable component size: 0402-5050、SOP、TQFP、QFN etc.
Component type supply: Tape reel, Bulk, Tubular, Tray, etc.
Vision system: 2 HD CCD Camera. Up-looking, Auto-identify angle deviations & position deviations.
Down-looking camera, Auto-identify mark point of PCB
Operating system: Built-in computer, Windows 7
Come with Feeder table & Tape width: 46pcs, 8mm=38、12mm=6、16mm=2
Pump: 1 silent brushless vacuum pump, Blowing pump
Support PCB design software: Protl99/Altium Designer/Eagle/Pads/ Allegre etc
Small tabletop pick and place machine simple desktop pick and place PCB mounter

Enter the Small Tabletop Pick and Place Machine—compact, efficient, and just what you need to step up your prototype PCBs.

Whether you’re a small business, a solo engineer, or part of a growing startup, this guide is here to help you understand why this machine could be a game-changer.

Features:

. The mounter can mount at least a fine pith of 0,5mm
. Component size to mount: 0402-5050、SOP、TQFP、QFN etc.
. Component type: Tape reel, Bulk, Tubular, Tray, etc.
. No need for an air compressor source
. Can used for Prototype PCB
. 2 HD CCD cameras & automatic identifying
. No need for extra feeder: Come with feeder table 8mm & 12/16mm and holder for component reels
. Low dB noise. Suit for small office or factory
. Model: TVM802BX
. Max applicable PCB: 20x20mm~260x340mm
. Placement head quantity: 2 heads
