Specification for labels:
Label size(≤50mm):3mmx3mm*thickness0.02mm(Min) to 50mm*50mm
Label size(≤100mm):3mmx3mm*thickness0.02mm(Min) to 100mm*100mm
Label feeder optinal for applicated machine:SM481 SM451 SM421 SM411 SM320 CP60, CP50, CP45NEO CP40…etc
Feeder feeding speed:Max 40mm/s(Can be adjusted)
Label feeder specification: 50mm or 100mm
Diameter: 50mm:L492.7mmxH189.38mmxW90mm 100mm:L492mmxH250.46mmxW168.45mm
Weight : 50mm: Around 5.7kg(50mm) 100mm: Around 10.7kg
Applicated machines For Samsung mechenical feeders pallet base station
Communication mode Tray feeder software programming
Voltage:12-24VDC(placement machine can use electricity directly.
Current:12A
Controller:Touch screen
Label positioning: Optical fiber sensor combined with controller distance algorithm positioning
Label positioning accuracy:X：±0.1mm Y：±0.1mm
Label feeding speed:Max speed 40mm/s(Can be adjusted)
|
JUKI LABEL FEEDER FS-LB-JUKI-100
|
FUJI NXT LABEL FEEDER
|
Yamaha YS label feeder FS-LB-YS12-50-V03
|

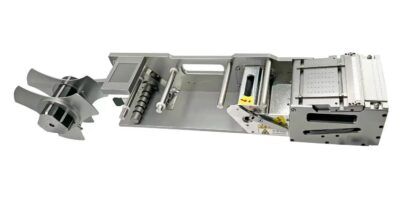

| Yamaha YV label feeder FS-LB-YV100-80-V01 | Samsung label SME feederFS-LB-SAM-100-Y03 | ASM label feeder Siplace D series FS-LB-ASM-50-V01 |
