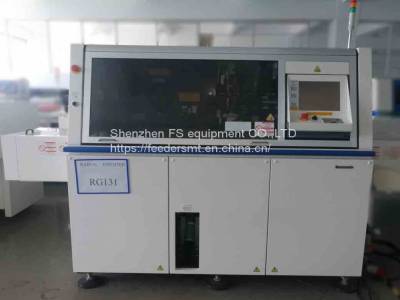

Radial lead component insertion RG131

You are here: Home » Products » Axial-Radial machine » Radial lead component insertion RG131
Machine Model: NM-EJR3A/NM-EJR4A
Machine Type: Radial insertion RG131
Max. speed: 0.25s~0.6s/component
Application components size: Pitch 2.5/5.0mm,7.5mm and 10mm(option)
PCB diameters(L*W): 50 x 50 mm to 508 x 381mm
Electric source: 3-phase AC200V,3.5kVA
Brand: Panasonic
Pneumatic source: 0.5MPa,80L/min(A.N.R)
Machine Size(L*W*H): 3200mm x 2417mm x 1620mm
Gross Weight: 2250 KG
Lead Time: 10 working days
Shipment way: By sea
Payment Terms: T/T
Radial lead component insertion RG131

Operability enhancement

Identical control panels are set up at the front side and the rear side of the RG131 so that operability can be significantly improved.

(Standard specification)

The liquid crystal touch panel is employed for the control panel and easy operation can be provided by the operation guidance indication.

Japanese, English, or Chinese can be selected by the one-touch operation as the language used for the screen displays.

The new controller can store up to 200 types of programs. Data can be input to and output from high-capacity SD memory cards.

NC data of our conventional equipment (RH series) can be used by the RG131.

Setup support functions that display the component layout of the component supply unit on the screen are provided.

Maintenance support functions that display information of regular maintenance time and operation content are provided.

Reduction of running cost

Expendable parts of the RG131 such as the Anvil blade, lead cutter, chuck rubber, and pusher rubber are compatible with those of the RHSG.

The transfer system, the XY table, the controller, and the driver can be used in any one of the Insertion machine series.

The setup and maintenance operations are standardized.

Feature:

Higher insertion speed and operation efficiency improve productivity

Either one of 2-pitch (2.5mm/5.0mm), 3-pitch (2.5mm/5.0mm/7.5mm) or 4-pitch (2.5mm/5.0mm/7.5mm/10.0mm) spec. can be selected for insertion pitch.

Realized high speed insertion at a rate of between 0.25 s and 0.6 s per component. even for large-size components with 3-pitch (2.5mm/5.0mm/7.5mm) or 4-pitch (2.5mm/5.0mm/7.5mm/10.0mm) spec.

The use of guide pins makes high-density insertion possible when there is a gap between components.

Model:RG131

Model No. NM-EJR3A- NM-EJR4A

PCB dimensions (mm) L 50 x W 50 to L 508 x W 381

Max. speed 1 0.25 s/component to 0.6 s/component

No.of component inputs: 40-80 (Connection mode), 40 + 40 (Exchange mode)

Applicable components Pitch 2.5 mm, 5.0 mm, 7.5 mm, 10.0 mm

Height Hn=Max. 26 mm Diameter D=Max. 18 mm

Resistor, Electrolytic capacitor, Ceramic capacitor, LED, Transistor, Filter, Resistor network

PCB exchange time about 2 s to about 4 s (Room temperature 20°C)

Insertion direction 4 directions (0 °, 90 °, -90 °, 180 °)

Electric source *2 3-phase AC 200 V, 3.5 kVA

Pneumatic source 0.5 MPa, 80 L/min (A.N.R.)

Dimensions (mm) W 3 200 x D 2 417 x H 1 620 *3

Mass Weight 2250 kg-2350 kg

Radial machine Model
Speed/s/chip
PCB dimensions
Applicable components
Brand
RL131 NM-EJR1A 0.17 L50mm x W50 mm to L508mm x W381mm  Pitch 2.5,5.0mm, Hn = Max.21mm, D =  Max.13mm Panasonic
RG131 NM-EJR3A 0.25~0.6 L50mm x W50 mm to L508mm x W381mm Pitch 2.5,5.0mm,7.5mm and 10mm(option) Panasonic
RHS2B NM−RA20A 0.17  L50mm x W50 mm to L508mm x W381mm Pitch 2.5,5.0mm Panasonic
RHSG NM-RB00A 0.25 L50mm x W50 mm to L330mm x W250mm Pitch 2.5mm,5.0mm Panasonic

Working together with FS, we are able to provide a complete SMT insertion THT PTH line for all PCB assembly customers all over the world. We can provide the complete service from design, supply, installation to commissioning ; for more information.
