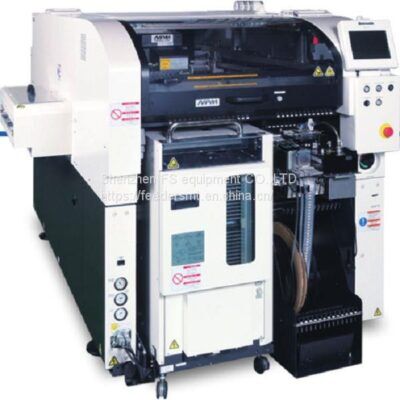

PCB pick and place NPM-TT2 can be directly connected to NPM-D3/W2 to form an SMT production line.
Placement heads of the NPM series (lightweight 8-nozzle placement head, 3-nozzle placement head V2)
The specifications of the panasonic mounter NPM supply department can be selected and changed
Adopt multifunctional recognition camera
High productivity with completely independent installation
Check options before suction
PCB substrate size:
Single track type: L50mm*W50mm～L510mm*W590mm
Double track type: L50mm*W50mm～L510mm*W300mm
M substrate size:
Single track type: L50mm*W50mm～L510mm*W510mm
Double track type: L50mm*W50mm～L510mm*W260mm
Substrate replacement time
Single track type: 4.0s (when no components are mounted on the reverse side of the substrate)
Dual-track type: 0s*It cannot be 0s when the cycle time is less than 4.0s.
Power supply: three-phase AC200, 220, 380, 400, 420, 480V 2.5kVA
Placement head: 8-nozzle placement head (when equipped with two placement heads)
Mounting speed PC size: 36000cph (0.1s/chip)
M size: 34920cph (0.1s/chip)
Mounting accuracy (Cpk≥1): ±40μm/chip, ±30μm/QFP 12mm~32mm, ±50μm/QFP 12mm or less
Component size: 0402 chip*6~L32mm*W32mm*T12mm
Component supply Taping taping width: 4~56/72mm
Placement head: 3-nozzle placement head*5 (when equipped with 2 placement heads)
Mounting speed PC size: 14400cph (0.25s/chip) 11800cph (0.31s/QFP)
M size: 13968cph (0.26s/chip) 11446cph (0.32s/QFP)
Mounting accuracy (Cpk≥1): ±40μm/chip ±30μm/QFP
Component size: 0603 chip~L150mm*W25mm (diagonal 152)*T30mm
Component supply Taping taping width: 4~56/72/88/104mm
Component supply Taping: front and rear tray feeder specifications: Max.52 even
Front and rear exchange trolley specifications: Max.120 even
(Tape width: 4/8mm thin single feeder and double tape feeder, small reel)
Rod shape: front and rear tray feeder specifications: Max.6 even
Front and rear exchange trolley specifications: Max.14 even
