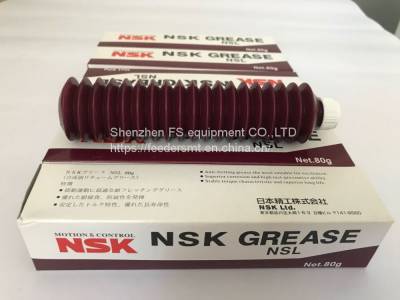

| Part number: | K48-M3856-00X | | Model: | NSK GRS NSL | | Temperature: | - 40℃ to 130℃ | | Maintain Part: | Ball screw maintain grease YS24 YSM | | Capacity: | 80g | | Brand: | NSK Yamaha | | Application: | SMT assembly line | | Ship term: | Flight | | Lead time: | Stock | | |
Features:
Packaged grease for ball screws.
It has anti-fretting property and superb torque characteristics(low torque) for high-speed operation.
Range of use temperature:
-40℃ to 130℃
Properties:
Thickener lithium soap
Base oil Synthetic hydrocarbon oil + ester oil
Consistency 280
Dropping point 200℃
Volume of evaporation 0.31%(99℃ 22 hr)
Copper plate corrosion test Satisfactory (100℃ 24 hr)
Oil separation 1.3%(100℃ 24 hr)
Base oil kinematic viscosity 169 m㎡/s(40℃)
How to replenish
1 Wipe off old grease on the rail and screw shaft by clean cloth.
2 Supply grease until it comes out from the ball slide or ball nut area.
Move the ball slide or ball nut by hand while filling them with grease.
3 Full-pack state.
