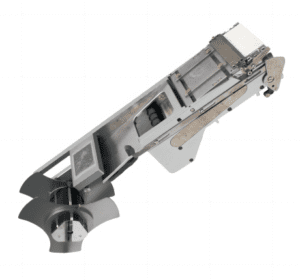

YVシリーズヤマハラベルフィーダーYV88 YV100 YG100 YG200ラベルフィード

あなたはここにいる: 家 » プロダクツ » SMTフィーダ » YV series Yamaha label feeder YV88 YV100 YG100 YG200 label-feeding
キット番号: FS-LB-YV100-80-V01
願い出る: For Yamaha YV88 YV100 YG100 YG200
材料: Shell, ステンレス鋼合金; Platform, white silicone
LxWxH(長さ×幅×高さ)(ミリメートル): 450x114x110 5.4kg; 450x88x110 4.7kg
YVシリーズヤマハラベルフィーダーYV88 YV100 YG100 YG200ラベルフィード



顔立ち

  1. Comes with a communication connection. The standard power interface plugs for power.
  2. Touch screen controlling operation with multiple parameter settings and memory.
  3. With a damped feed wheel. The damping can be adjusted to suit various situations.
  4. Flip-top design with a safety buckle to protect workers’ safety.
  5. The feeding table is available in various materials.
  6. Label feeder tape width is available in various sizes. 105ミリメートル, 85mm width, and 55mm width.

力: DC 24v 1A~2A

Vacuum adsorption:0.4~0.6 Mpa(随意)

Driving motor: Stepping motor

Wheel Diameter: Inner Dia 3 in/76.2mm; Outer Max Dia 8 in/200mm

Method of label positioning: Fiber positioning, pulse compensation

Max Feeding Speed: 100mm/s

Feeding Accuracy: X±0.1mm Y±0.1mm

Applicable packing of material: Reel tape

Applicable material: Label, metal sheet, 泡, 映画

Applicable label QTY: ≤12pcs/row

Applicable label size: Single row Min label 2x2mm, Thickness≥0.02mm

Peeling method: forward push peeling

Installation material: Stop and manual operation

Scrap recycling: 随意

Material shortage alarm: alarm and shutdown

Dropping and Aging testing: Shell 0.5kg/cm² No abnormality, Work continuously for 48 hours No abnormality
