| Codice prodotto: |
KXF0CWLAA00 |
| Nome della parte: |
CM402 CM212 Y-axis Servo motor |
| Tipo di modello: |
HC-RFS103-S1 |
| Peso: |
3.9Kg (N.W) |
| Marchio: |
Mitsubishi |
| Rated Current(Un): |
6.1 |
|
|

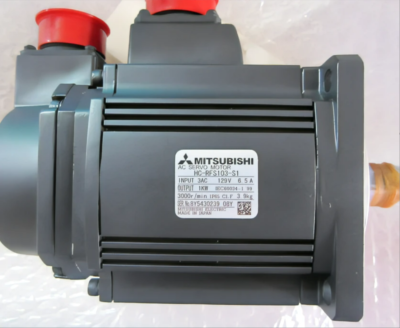

Nome: CM402 CM212 Y-axis motor low inertia medium power Mitsubishi servo motor
Modello: HC-RFS103-S1
Motor series: ultra-low inertia, medium power.
Rated output power: 1.0chilowatt.
Rated speed: 3000r/min.
Whether with brakes: no
Shaft end: standard (straight shaft)
Protection class: IP65 (IP67).
Tratti somatici: Low inertia is suitable for the high-frequency operation of the machine.
Application example: high-frequency transmission machinery.
High-resolution encoder 131072 Pulse/rev (17 bits).
The motor incorporates a high-resolution encoder to ensure excellent performance and stability at low speeds.
All motor sizes are the same as previous products and the wiring is all compatible.
Application machinery range:
1. Injection molding machine
2. Semiconductor manufacturing and SMT production line placement equipment
3. Large material conveying system
4. Punching machine
