Hitachi SIGMA Σ-G5 mounter double side component feeding

You are here: Home » Products » Pick and Place machine » Hitachi SIGMA Σ-G5 mounter double side component feeding
Model Name: GXH-1S GXH-3 GXH-3J
Mount speed: 0.045 sec/chip 80000 CPH
Component size: 0402(01005'') chip-120*90mm BGA CSP Socket and other special shaped components
Nozzle head: 4 nozzle heads/per head 12 nozzles
Electric source: AC200v~440v 50-60Hz
PCB Size: 50 x 50~460 x 460mm
Lead Time: Stock
Payment Terms: T/T

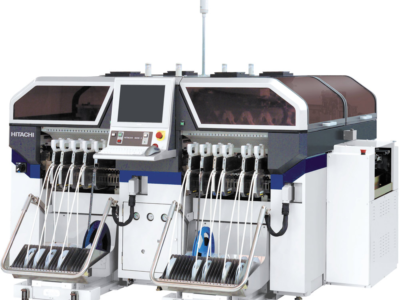

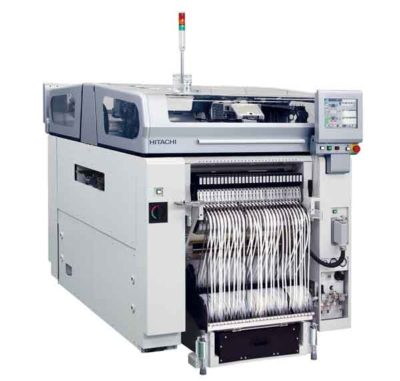

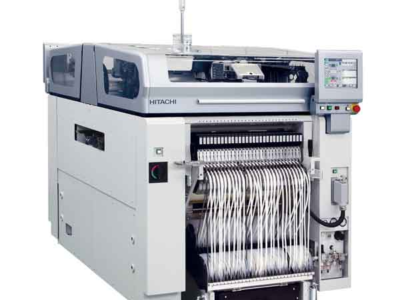

Hitachi SIGMA Σ-G5 mounter double side component feeding

Features:

. Pick and place components ranging from very small 0.4 × 0.2-mm chips to large 100 × 26-mm connectors on circuit boards
. Front and rear heads use suction to pick up components from the feeder base (component feeder) simultaneously, then the component recognition camera determines the component locations and the heads move at high speed via the X and Y beams with 70,000 chips per hour
. Position correction is then performed and the two heads place the components simultaneously on the correctly positioned circuit board
· Available in a range of variations with different heads, component feed methods, and circuit board conveyors
. The component types supported of multi-function head from 1005(1.0 x 0.5mm) to 55 x 55mm,100 x 26mm. Thickness is 25.4mm or less

We need to deal with the following feeders and parts to be maintained:

FEEDER TYPE
MODEL NUMBER
GD-38080-B GD-38080-B
GD12162-D GD12162-D
FX-G200 KYB-M1200-00
GD12162-C GD12162-C
GD12162-B GD12162-B
AC-SERVO DRIVER KYL-M860A-000
MOTOR AC-SERVO KYL-M8604-000
SERVO DRIVER KYL-M860W-00
MOTOR AC-SERVO KYK-M860P-00
