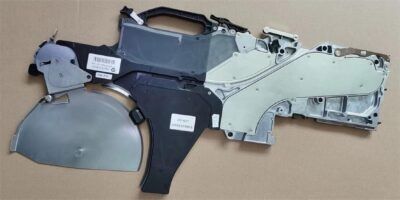

Hanwha SME feeder electric Samsung SM feeder

You are here: Home » Products » SMT FEEDER » Hanwha SME feeder electric Samsung SM feeder
Kit Number: SME 8mm MF2-1107/CO
MF2-1105/CO
MF2-FB42003/CO
MF2-1306/CO
Apply for: Hanwha SM471 SM481 SM485 machine tape feeder
Size: SM8x2mm 8x4mm SME 8mm 12mm~56mm
Lead Time:  Stock vintage available
Shipment way: By air
Payment Terms: T/T
Hanwha SME feeder electric Samsung SM feeder

How to deal with it in time in effective way When we encounter Hanwha Samsung SM feeder SME feeding failure?
We cite a few typical cases the following.
1.Error message: Open error (no movement of cylinder)
Treatment method: If the cylinder J9065213A or transmission cylinder CJ2R10-8.3B-KRJ does not work, we need to check whether the thimble is intact – whether the solenoid valve circuit is in good contact – check the control board AM03-010389C- check the solenoid valve – check the cylinder CJ2R10-8.3B-KRJ or J9065213A – Cheak the gas supply pipeline

2.Error message: The light is off
Solution: Check the control board J90600367C(or IT_MASTER_FEEDER), reinsert and unplug it. Or replace the switch(SM 8mm J9065186A,SME 8MM J90611844A,SM 24mm J9065212A) – check the switch for good contact.

3.Error message: Reeling often
Treatment method: Check whether there are impurities in the white gear and whether there is a feeling of card in manual rotation

4.Error message: The center position of the components outline display is offset
Treatment method: It is the small runner of the feeder base is hit and deformed and it can be repaired with a tool.
