| Part number: |
6301592589 6301592596 |
| Part Name: |
Assy Lever MAKITORI-R/L |
| Applicable component size: |
0402~3216 |
| Applicable pitch: |
8x1mm/8x2mm |
| Specification: |
Standard mounting component |
| Mark: |
None |
|
|
Description

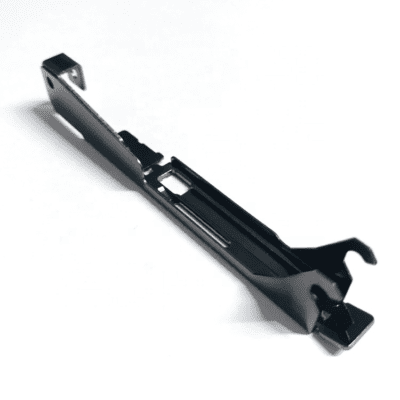

Parts Assy Lever MAKITORI-R 6301592589 MAKITORI-L 6301592596 is the upper cover to press the component reel materials for the electric tape feeder of Hitachi GXH-1 or GXH-1S machines.
Specification: Standard mounting part
Part No.: Right:6301592589 Left:6301592596
The applicable component size is from 0402 to 3216 and the applicable pitch is 8x1mm and 8x2mm
Replacing the assy lever:
1. Loosen the screw to remove the upper pusher plate and the spring
2. Raise the assy lever hook to remove the upper cover.
3. Apply grease or lubricant if necessary to the groove with a cotton swab
4. Mount an assy lever suitable for the feed pitch and component size in the reverse order of 1 to 3.
Cover cs screw tightening torque is 0.29N.m
