| Número de pieza: |
KXFP6GB0A00 |
| Nombre de la pieza: |

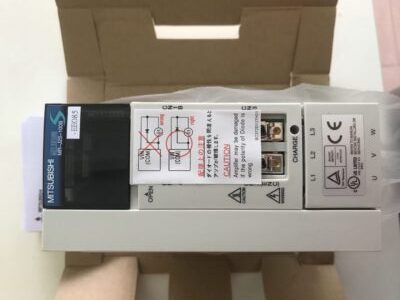

CM402 Y Axis Servo Amplifier Driver |
| Tipo de modelo: |
MR-J2S-100B-EE085 |
| Peso: |
2.5kg (GW) |
| Marca: |
Mitsubishi |
| Tamaño: |
9*8*4 en |
|
|
MR-J2S-100B-EE085,CM402 Y Axis Servo Amplifier Driver
Output points: 16 points.
Output voltage and current: DC12~24V; 0.5A/point; 4A/common.
Shutdown Leakage Current: 0.1mA.
Response time: 1 ms.
16 points and 1 common source type.
Ventajas:
- Ultra-high-speed machining for shorter production times and better performance. As applications become larger and more complex, reducing the system cycle time is necessary.
- The ultra-high basic operation speed of 1.9ns can shorten the operation cycle. In addition to realizing the high-speed control controlled by a single-chip microcomputer in the past.
- System performance can be improved by reducing the total scan time. Prevent any possible performance deviations.
It is convenient to handle large-capacity data.
- Standard RAM can be used as continuous file registers, The capacity is as high as 4736K words, simplifying programming.
In this way, even if the memory space of the device is insufficient, An extended SRAM card can also be installed to facilitate the expansion of the file register area.
- The address register is extended to 32 bits, which can be programmed beyond the traditional 32K words, And realize the expansion of the file register to all areas of the file register.
- Además, the processing speed of index modification plays an important role in the efficient operation of structured data (arrays).
This can reduce scan time when the index is used in a repeatedly modifying program (such as from FOR to NEXT).
Except above, the multi-CPU system also helps to determine the data sending and receiving time between CPU modules. It can be used to analyze data collected by programming tools, In the form of charts and trend graphs, it is easy to display the data changes of bit and word soft cells.
