BOM ASSY BOARD CLAMP FOILS 500MM DEK 215607 137516

You are here: Home » Products » SMT spare parts » Solder Paste Printer Parts » BOM ASSY BOARD CLAMP FOILS 500MM DEK 215607 137516

Model:	DEK 215607 137516
Material:	Stainless steel plastick
Size:	250mm 500mm*0.1mm
Using for:	CARRIER BOARD
Ship term:	Flight
Lead time:	Stock

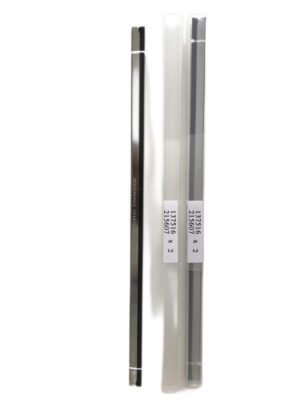

BOM ASSY BOARD CLAMP FOILS 500MM DEK 215607 137516

Track board clamp for DEK printers. Fix the position of the PCB and prevent the PCB from moving up and down. The size is 250mm and 500mm, and the thickness of the blade is generally 0.10mm. Please wear gloves when using to prevent cuts. The part number is as follows.
ASSY BOARD CLAMPS QUICK RELEASE 250 MM DEK 178031
FOIL SHIM 520 MM QF B/CLAMP DEK 5157438 137516
FOIL SHIM 340 MM QF B/ CLMP DEK 177061
BOARD CLAMP DEK 119203
CARRIER BOARD CLAMP TRANSPORT RAILS 500mm DEK 158815 215607

The camera part as below
BOM CAMERA ASSY GREEN DEK 145550 (Compatible with 155826 181501 181322)
BOM CAMERA ASSY GRAPHITE 2 DEK 181322 (compatible with 145550, 155826 181062)
CAMERA MOUNT DEK 140127
CAMERA PLUG BRACKET DEK 119641
CAMERA, MOUNTDEK 145230
DRAG CHAIN, CAMERA VISION X axis DEK 156028
DRAG CHAIN, CAMERA VISION Y axis DEK 160432
BOM LOOM CAMERA X MOTOR PWR I VISION X DEK 191238

Category: Solder Paste Printer Parts | Tag:
