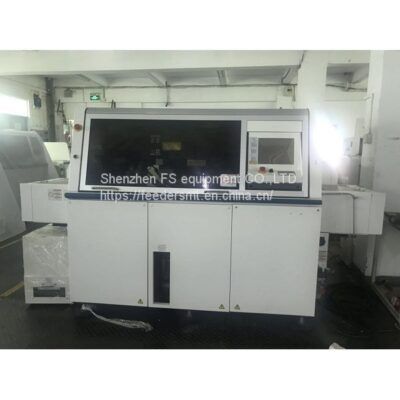

Axial AV131 Panasonic insertion

You are here: Home » Products » Axial-Radial machine » Axial AV131 Panasonic insertion
Machine Model: NM-EJA3A/NM-EJA2A
Machine Type: Axial insertion AV131
Max. speed: 0.12s/chip
Component pitch: 5-26mm
PCB diameters(L*W): 50 x 50 mm to 508 x 381mm
Electric source: 3-phase AC200V,4kVA
Brand: Panasonic
Pneumatic source: 0.5MPa,150L/min(A.N.R)
Machine Size(L*W*H): 4070 x 1910 x 1610mm
Gross Weight: 2520 KG
Lead Time: 10 working days
Shipment way: By sea
Payment Terms: T/T
Axial AV131 Panasonic insertion

Horizontal Panasonic plug-insertion machine AV131(NM-EJA3A-NM-EJA2A): AV131 uses 0.12s/point high-speed plug-in and an axial component plug-in machine that increases productivity within the expansion speed. The equipment runs stably and does not require an external transformer.

Substrate size: L50mm*W50mm-L508mm*W381mm

Plug-in speed: 0.12s/point

Number of components: 60+60+JW (JW option)/60+JW

Target components: resistance 1/8W, 1/6W, 1/4W, 1/2W, jumper wire (tin pin wire) two tube, cylindrical ceramic capacitor

Substrate replacement time: about 2.0s

Component insertion direction: 4 directions (0 degrees, 90 degrees, 180 degrees, 270 degrees)

Power supply: three-phase AC200V, 4KVA

Air pressure source: 0.5MPA, 150L/min (A.N.R)

Equipment size: W4070mm*D1910mm*H1610mm W2810mm*D1910mm*H1610mm

Equipment weight: 2520KG, 1750KG

The automatic insert machine is a machine that automatically installs the tape electronic components on the printed circuit board according to the program. The traditional electronics assembly industry relies mainly on workers to insert electronic components onto circuit boards. Since the mass production of machines, the speed of manual insertion is slow, and the defects of poor workmanship are exposed. Using the axial or radial machine to automatically install the electronic originals on the circuit board can save labor costs and improve the level of plug-in craftsmanship.

AVK PISTON

cutter AVP/RH3 CUTTER X050927T/X050927

Blade AV/RH CUTTER X004-250-S94

Cut tool AVP CUTTER 1020719356

Blade tool AVP CUTTER 20718814

Panasonic cutter blade fixed AV-RH FIXED BLADE X018553

Radial machine Model
Speed/s/chip
PCB dimensions
Component pitch
Feeder
AV131 NM-EJA3A 0.12 L50mm x W50 mm to L508mm x W381mm 5-26mm 20pcs(26/52mm)
AVK2B NM-AA20 24,000CPH(0.15S/chip) L50mm x W50 mm to L508mm x W381mm 5-26mm 20pcs(26/52mm)
AVK3 NM−AA30 0.12  L50mm x W50 mm to L508mm x W381mm 5-26mm 20pcs(26/52mm)
AVK2 NM-RB00A 0.15 L50mm x W50 mm to L330mm x W250mm 5-26mm 20pcs(26/52mm)
